Sidewall Patches
Repair patches for sidewall damage, made for the part of the tire that flexes the most.
What they're for
About our sidewall patches
The sidewall flexes with every turn of the wheel, and it's exposed to cuts from sharp rock, berms and pit walls. Repairs here need to flex with the tire while it carries its load.
Elk Valley Sidewall Patches are made for the demands of the sidewall area. Like all our patches, they're black with our bright-orange edge layer, so the repair is easy to spot at every inspection.
- Cuts and impact damage to the sidewall
- Damage from sharp rock, berms and pit walls
- Giant OTR tires on haul trucks, loaders and dozers
Size chart
C-Section sidewall patch sizes
For cracks between cables and injuries up to 3 broken cables in the sidewall. Custom sizes available up to 12" in width.
| Part # | Size | Construction |
|---|---|---|
| EV-38C | 3" × 8" | 2 plies of Aramid Fiber |
| EV-310C | 3" × 10" | 2 plies of Aramid Fiber |
| EV-312C | 3" × 12" | 2 plies of Aramid Fiber |
| EV-315C | 3" × 15" | 2 plies of Aramid Fiber |
| EV-320C | 3" × 20" | 2 plies of Aramid Fiber |
| EV-325C | 3" × 25" | 2 plies of Aramid Fiber |
| EV-330C | 3" × 30" | 2 plies of Aramid Fiber |
| EV-335C | 3" × 35" | 2 plies of Aramid Fiber |
| EV-415C | 4" × 15" | 3 plies of Aramid Fiber |
| EV-420C | 4" × 20" | 3 plies of Aramid Fiber |
| EV-425C | 4" × 25" | 3 plies of Aramid Fiber |
| EV-430C | 4" × 30" | 3 plies of Aramid Fiber |
| EV-435C | 4" × 35" | 3 plies of Aramid Fiber |
| EV-440C | 4" × 40" | 3 plies of Aramid Fiber |
| EV-520C | 5" × 20" | 3 plies of Aramid Fiber |
| EV-525C | 5" × 25" | 3 plies of Aramid Fiber |
| EV-530C | 5" × 30" | 3 plies of Aramid Fiber |
| EV-535C | 5" × 35" | 3 plies of Aramid Fiber |
| EV-540C | 5" × 40" | 3 plies of Aramid Fiber |
| EV-620C | 6" × 20" | 3 plies of Aramid Fiber |
| EV-625C | 6" × 25" | 3 plies of Aramid Fiber |
| EV-630C | 6" × 30" | 3 plies of Aramid Fiber |
| EV-635C | 6" × 35" | 3 plies of Aramid Fiber |
| EV-640C | 6" × 40" | 3 plies of Aramid Fiber |
| EV-645C | 6" × 45" | 3 plies of Aramid Fiber |
| EV-725C | 7" × 25" | 4 plies of Aramid Fiber |
| EV-730C | 7" × 30" | 4 plies of Aramid Fiber |
| EV-735C | 7" × 35" | 4 plies of Aramid Fiber |
| EV-740C | 7" × 40" | 4 plies of Aramid Fiber |
| EV-745C | 7" × 45" | 4 plies of Aramid Fiber |
Not sure which size you need? Email don@elkvalleypatches.com with your tire size and a photo of the damage.

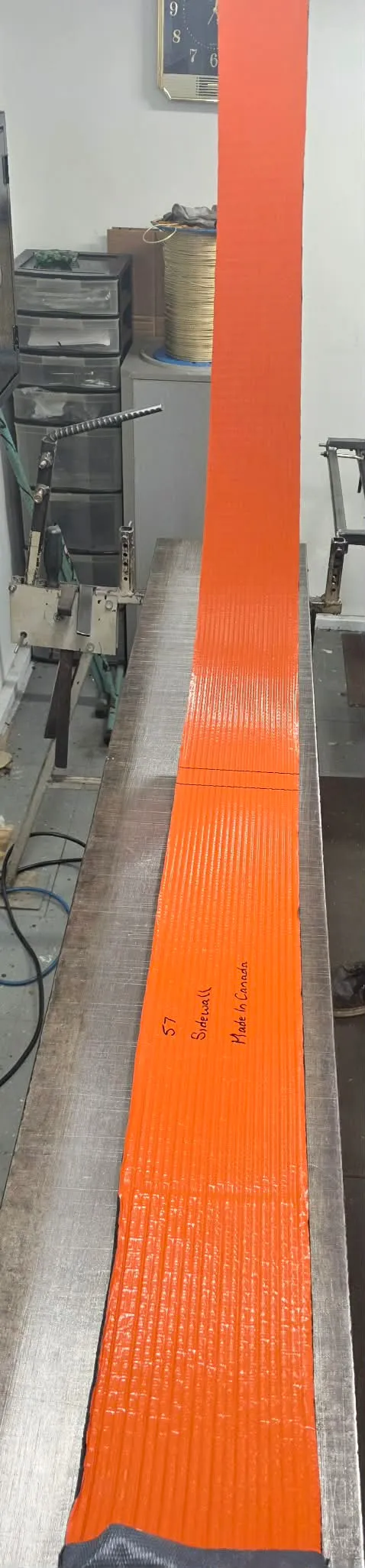

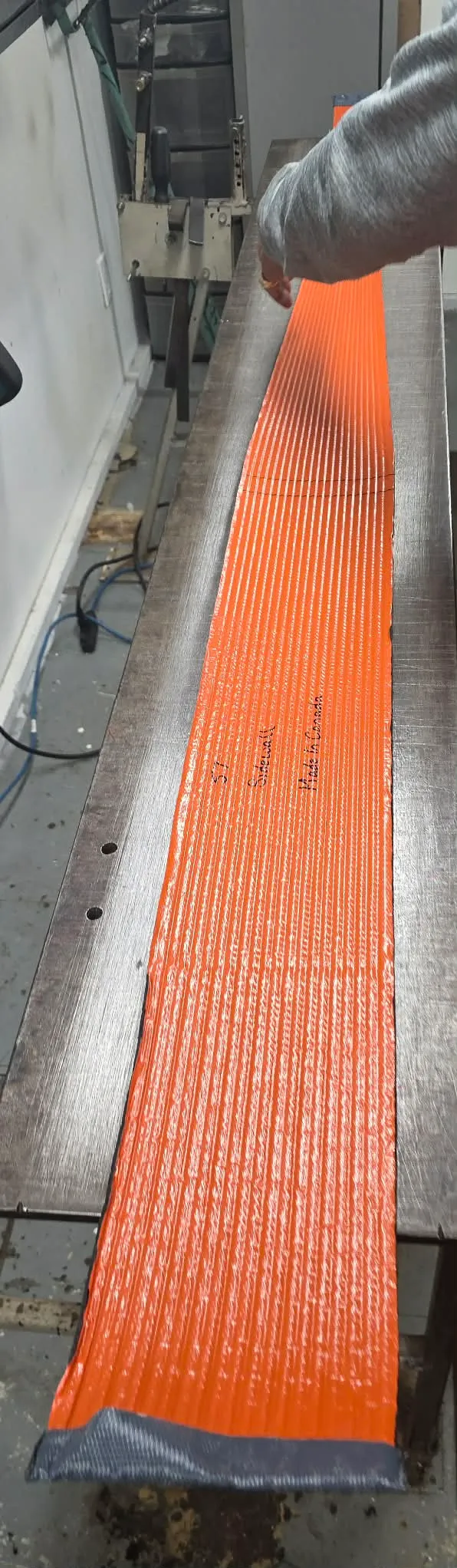

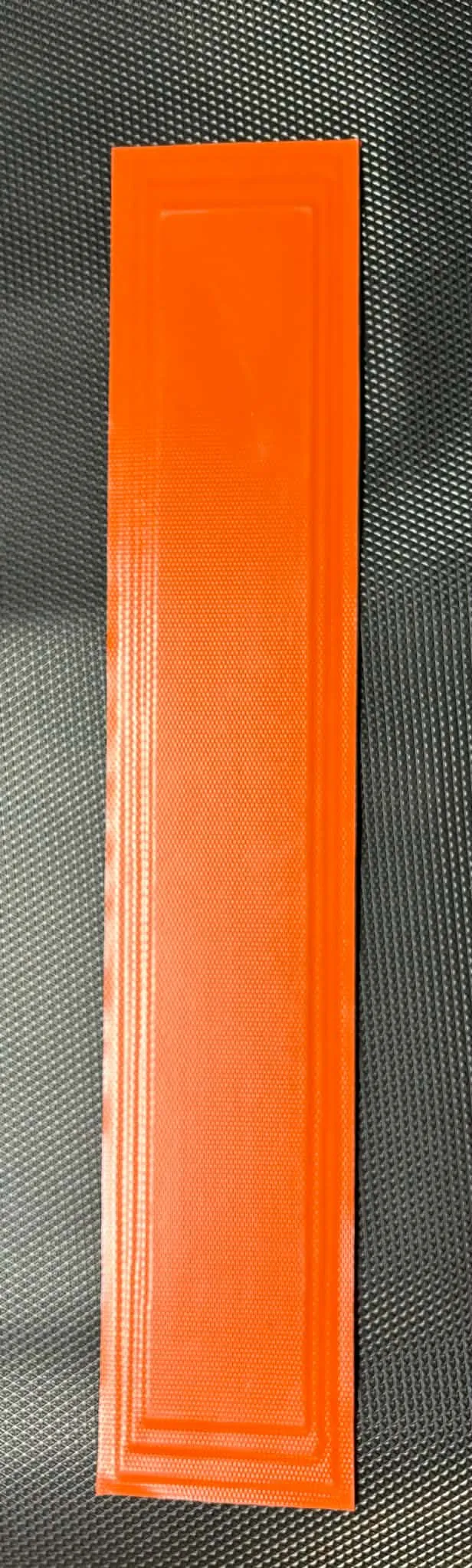

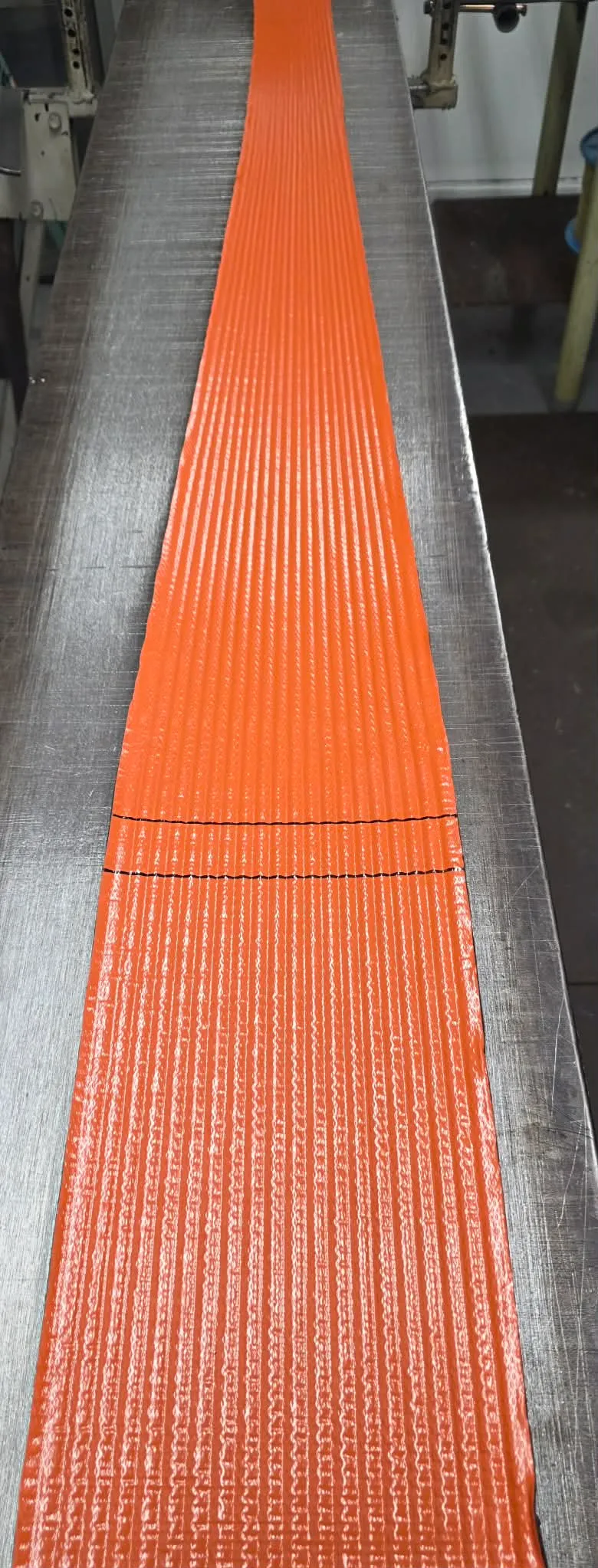

Product examples
Need sidewall patches?
Tell us about the tire and the damage, and we'll point you to the right size.
